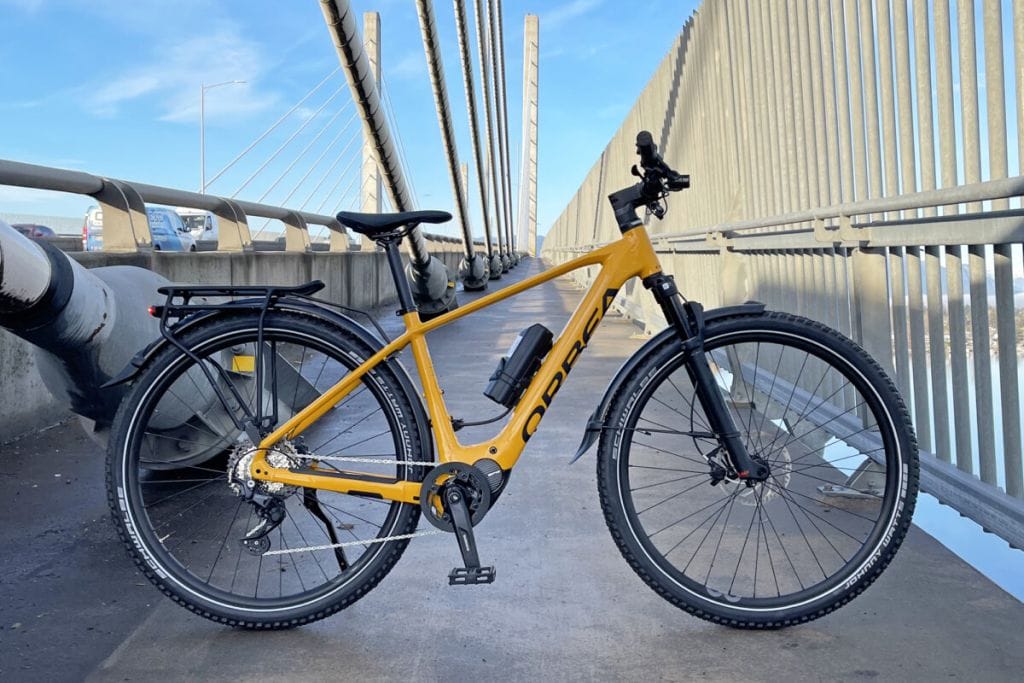

Summary of Orbea KEMEN SUV 30 E-Bike Review

The Orbea KEMEN SUV 30 is an adventure touring electric bike designed to tackle a variety of terrains with ease and reliability. Featuring a robust Marzocchi Bomber air suspension fork with 100mm of travel, this bike promises smooth rides over bumpy roads and trails. The fork includes compression adjust and rebound adjust settings, allowing riders to fine-tune their suspension for optimal performance. The bike is also equipped with Boost Hub spacing, providing wider, sturdier hubs and thru-axles (15mm in the front and 12mm in the back) for enhanced stability.

Powering the KEMEN SUV 30 is the Shimano EP8 mid-drive motor, which delivers 85Nm of torque. This motor is known for its light weight and nimble performance, making the bike easy to handle even with its large 29-inch wheels. These wheels have a low attack angle, allowing the bike to roll over obstacles with ease, enhancing the cross-country touring experience.

The bike comes with sturdy aluminum alloy fenders, designed to keep riders clean and free from debris. The rear rack, rated to carry up to 27kg (approximately 60lbs), is one of the best features of this bike. It’s MIK HD and Ortlieb compatible, with pannier hangers and a bungee loop for added functionality. This makes it ideal for carrying cargo or even a child seat.

The KEMEN SUV 30 is fitted with Schwalbe Johnny Watts tires, which are e-MTB rated and come with reflective sidewalls for added safety. These tires offer puncture protection and are suitable for both off-road and city environments.

In terms of drivetrain, the bike features a Shimano Deore derailleur with an e-bike specific 10-speed cassette (11-43 tooth range). This setup ensures smooth and efficient gear changes, even under the high torque produced by the mid-drive motor. The bike also includes a long rubber slap guard and a narrow-wide steel chainring with an aluminum alloy guard for added protection.

Weighing in at about 52.5 pounds for the medium size, the KEMEN SUV 30 is relatively light for an e-bike with such robust features. It comes in four frame sizes (small, medium, large, and extra-large) and three trim levels (40, 30, and 10), with the 10 being the highest spec model. The higher trim levels offer upgraded suspension, drivetrain components, and wheelsets.

Braking is handled by Magura MT3 hydraulic disc brakes with two-finger levers, providing excellent stopping power with 180mm rotors in the front and 160mm in the rear. The bike is also equipped with a comprehensive lighting system, including a Lezyne E115 Pro headlight and a 60-lumen running light, both of which are highly visible and integrated into the bike’s design.

The bike’s main battery is a 540Wh unit integrated into the downtube, with an optional 252Wh range extender available. This setup provides ample range for long-distance touring, although the battery is not easily removable. Charging is done via a 4-amp charger, which is faster than the standard 2-amp chargers found on many other e-bikes.

Overall, the Orbea KEMEN SUV 30 is a well-designed, versatile electric bike that offers excellent performance for adventure touring and everyday use. Its combination of sturdy construction, powerful motor, and thoughtful features make it a standout choice for riders looking to explore both on and off the beaten path.

Information of Orbea KEMEN SUV 30 E-Bike

  1. Range: Approx. 800 watt-hours with range extender
  2. Top Speed: Not specified in the review
  3. Motor Size: Shimano EP8 mid-drive motor, 85Nm of torque
  4. Battery Size: 540Wh main battery, 252Wh optional range extender
  5. Frame: Aluminum alloy, available in high step and mid-step
  6. Warranty: Not specified in the review
  7. Safety Certified: Not specified in the review
  8. Digital Display: Shimano display, backlit grayscale LCD

Full Specifications of Orbea KEMEN SUV 30 E-Bike

  • Miles Per Charge: Approx. 89 kilometers in lowest assist
  • Max Speed: Not specified in the review
  • Max Rider Weight: Not specified in the review
  • Waterproof Rating: Not specified in the review
  • Motor Size: Shimano EP8 mid-drive motor, 85Nm of torque
  • Battery Size: 540Wh main battery, 252Wh optional range extender
  • Tire Size: 29-inch Schwalbe Johnny Watts tires
  • Product Weight: Approx. 52.5 pounds (size medium)
  • Dimensions: Available in small, medium, large, and extra-large
  • Warranty Length: Not specified in the review
  • Frame Material: Aluminum alloy
  • Color(s): Three color options, including yellow
  • Inner Tubes: Not specified in the review
  • Brakes: Magura MT3 hydraulic disc brakes
  • Charge Time: Not specified, but includes a 4-amp charger
  • Suspension: Marzocchi Bomber air suspension fork, 100mm travel
  • Display: Shimano display, backlit grayscale LCD
  • Headlight: Lezyne E115 Pro headlight, 310 lumens
  • Charger: 4-amp charger
