Summary of the EVELO Atlas E-Bike

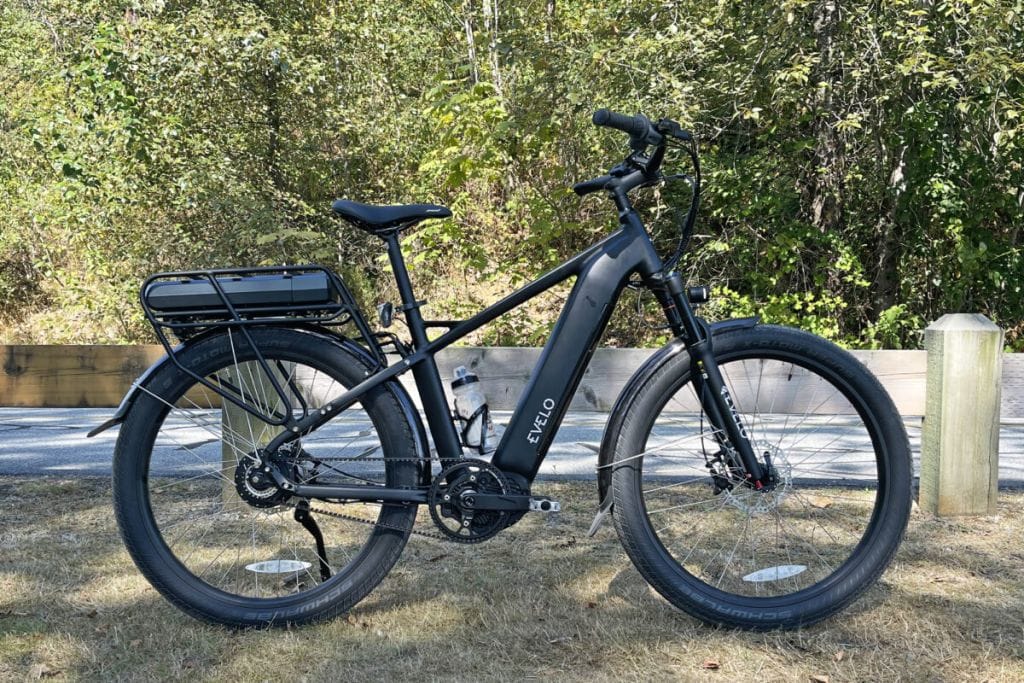

Meet the EVELO Atlas, an exceptional e-bike meticulously designed by John O’Donnell, the Director of Product Development. This bike showcases remarkable features, beginning with its innovative frame that includes a breakaway section, allowing the integration of the Gates carbon belt drive. This model utilizes the CDX variant, known for its superior performance and durability. The drivetrain features the Enviolo CVT with 380% gear range, offering the equivalent of an 11-42 tooth cassette but without the need for a derailleur, resulting in a cleaner and more efficient shifting experience, even when stationary.

The EVELO Atlas stands out with its robust build and premium components. The air suspension fork provides 110mm of travel, adjustable to suit various rider weights, and is equipped with progressive lockouts and compression adjusters. The bike features thick 34mm stanchions and boost hub spacing, contributing to its stability and control. The plus-sized tires, measuring 27.5 x 2.8 inches, enhance comfort and floatation while reducing the attack angle.

Powered by the Bafang M600 mid-drive motor, the Atlas delivers up to 120Nm of torque, ensuring a powerful yet smooth ride. Custom programming ensures the motor’s performance is both high-powered and progressive, making it suitable for both casual riders and mountain bikers. The bike can reach speeds of up to 28 mph, and an optional throttle can be added for off-road use.

One of the highlights of the EVELO Atlas is its versatility. It comes in a single frame size and a sleek satin black color, with internal cable routing for a clean look. The bike’s design includes ergonomic handlebars and a swept-back handlebar for a relaxed riding position, which can be converted for off-road use with a flat bar. The drivetrain features a 55-tooth chainring and a 26-tooth rear sprocket, complemented by 170mm crank arms and wellgo aluminum platform pedals.

Weighing in at 66.2 pounds with the battery, the EVELO Atlas balances its weight low and centrally, enhancing stability. The bike features plastic fenders mounted directly to the suspension fork, adding to its ruggedness without compromising aesthetics. The dynamic motor system includes sensors for pedal cadence and torque, supporting up to 110 RPMs.

Safety and convenience are prioritized with features like hydraulic disc brakes with 180mm rotors in the front and 160mm in the rear, ergonomic grips, and integrated lights. The bike uses CAN bus communication for precise electronic control, and the 21,700-cell battery provides 720 watt-hours of power. The Atlas includes a USB charging port, a robust aluminum housing for the battery, and an informative display with precise battery readouts and dynamic range estimates.

Priced at $4,699, the EVELO Atlas includes a comprehensive four-year warranty, a 21-day return policy, and free shipping within the contiguous US. The optional rear rack and additional battery pack enhance its range and utility, making it a versatile choice for various riding needs.

EVELO Atlas E-Bike Specifications

  1. Range: Varies based on use and terrain
  2. Top Speed: 28 mph
  3. Motor Size: Bafang M600, 120Nm torque
  4. Battery Size: 720 watt-hours (primary)
  5. Frame: Single size, satin black, internal cable routing
  6. Warranty: 4 years comprehensive
  7. Safety Certified: IP65 rating for water and dust resistance
  8. Digital Display: CAN bus communication, battery percentage, dynamic range estimates

Full Specifications

  • Miles Per Charge: Varies (depends on riding conditions)
  • Max Speed: 28 mph
  • Max Rider Weight: 350 lbs
  • Waterproof Rating: IP65
  • Motor Size: Bafang M600, 600W nominal, 1200W peak
  • Battery Size: 720Wh primary, optional additional battery available
  • Tire Size: 27.5 x 2.8 inches
  • Product Weight: 66.2 lbs (with battery)
  • Dimensions: Standard e-bike dimensions (detailed measurements not provided)
  • Warranty Length: 4 years comprehensive, 2 years on the battery (pro-rated up to 4 years)
  • Frame Material: Aluminum alloy
  • Color(s): Satin black
  • Inner Tubes: Standard for 27.5 x 2.8 inches
  • Brakes: Hydraulic disc brakes, 180mm front rotor, 160mm rear rotor
  • Charge Time: Approx. 3-4 hours with a 3A charger
  • Suspension: 110mm travel air suspension fork
  • Display: CAN bus, precise battery readout, dynamic range estimates, USB charging port
  • Headlight: Integrated, 400 lumens
