Surface 604 Shred XS: An Entertaining and Informative Overview

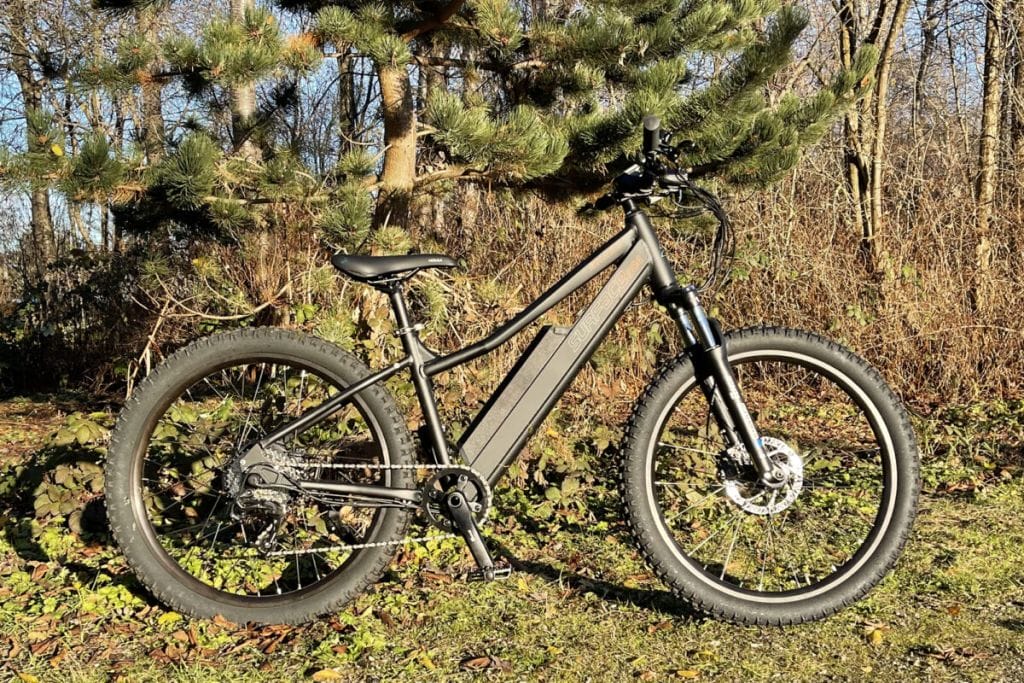

The Surface 604 Shred XS is an impressive electric bike that combines a compact frame with robust features, making it ideal for riders who want both agility and power. The “XS” in the name signifies its smaller frame and wheel size, catering specifically to those who require a shorter reach and lower standover height. With a seat tube length of 16 inches and a 26-inch standover height, this e-bike is perfect for those who find it challenging to find high-step diamond frames that are off-road capable. The minimum saddle height of just 30.5 inches is a rare find, adding to its accessibility.

The Shred XS stands out with its 26-inch wheel diameter paired with plus-sized tires, measuring 26″ x 2.8″. These chunky tires provide excellent traction, making off-road adventures a breeze. Powered by a Bafang planetary geared hub motor, the bike delivers 500 to 750 watts of power with 65 Nm of torque. This smaller wheel size enhances the bike’s mechanical advantage, making it a fun ride for those who enjoy a BMX-like feel with the bonus of electric power. The bike comes with a torque-sensing pedal assist, offering a natural riding experience that responds intuitively to your pedaling effort.

The bike features a high-quality SRAM X5 9-speed drivetrain, providing smooth and reliable gear shifts. The absence of a slap guard might be a minor oversight, but the hydroformed aluminum alloy frame ensures durability and resistance to rust. The Innova tires, although lacking reflective sidewalls and puncture protection, perform admirably on various terrains.

When it comes to battery options, the Shred XS offers flexibility. It comes with a 48V 14Ah battery as standard, weighing about 7.5 pounds. For those seeking more range, a 20Ah battery pack is available, though it adds a bit more weight and alters the bike’s symmetry. Both battery options provide ample power for long rides, and the integrated USB charge ports offer convenience for charging devices on the go.

The bike’s suspension system includes a 100mm travel fork with Boost spacing and a 15mm thru-axle, ensuring stability and comfort on rough trails. Despite its compact size, the Shred XS doesn’t compromise on quality, featuring Tektro Auriga hydraulic disc brakes with 180mm rotors for excellent stopping power. The bike is pre-wired for a rear light, and its frame allows for the addition of a rear rack, enhancing its utility.

The Surface 604 Shred XS is not only fun to ride but also practical, with a color display that provides essential information like speed, power output, and battery level. The bike weighs approximately 59.8 pounds, which is reasonable given its robust build and features.

Overall, the Shred XS is a versatile e-bike suitable for riders who appreciate a smaller frame without sacrificing performance. With its solid construction, advanced features, and thoughtful design, it’s an excellent choice for both new and experienced riders looking for a reliable and enjoyable ride.

E-Bike Information

  1. Range: Varies with usage and battery size; standard battery offers moderate range.
  2. Top Speed: 28 mph when unlocked; 20 mph as a class 2 e-bike.
  3. Motor Size: 500 to 750 watts.
  4. Battery Size: 48V 14Ah (standard), 20Ah (optional).
  5. Frame Type: Hydroformed aluminum alloy.
  6. Warranty: Decent warranty with free shipping in the contiguous US and Canada.
  7. Safety Certified: Not explicitly mentioned.
  8. Digital Display: Surface 604 color display with USB charging ports.

Full Specifications

  • Miles Per Charge: Dependent on battery choice and riding conditions.
  • Max Speed: 28 mph when unlocked.
  • Max Rider Weight: Not specified.
  • Waterproof Rating: Not specified.
  • Motor Size: 500 to 750 watts.
  • Battery Size: 48V 14Ah or 20Ah.
  • Tire Size: 26″ x 2.8″.
  • Product Weight: Approximately 59.8 pounds.
  • Dimensions: Not specified.
  • Warranty Length: Decent warranty, specifics not provided.
  • Frame Material: Hydroformed aluminum alloy.
  • Color(s): Not specified.
  • Inner Tubes: Not specified.
  • Brakes: Tektro Auriga hydraulic disc brakes, 180mm rotors.
  • Charge Time: Not specified; standard charger is 2A.
  • Suspension: 100mm travel fork with Boost spacing.
  • Display: Surface 604 color display with USB ports.
  • Headlight: Blue Shell Shiny 120 Lux with side windows.
  • Charger: Standard 2A charger.
