NCM Aspen E-Bike Overview – 500-Word Summary

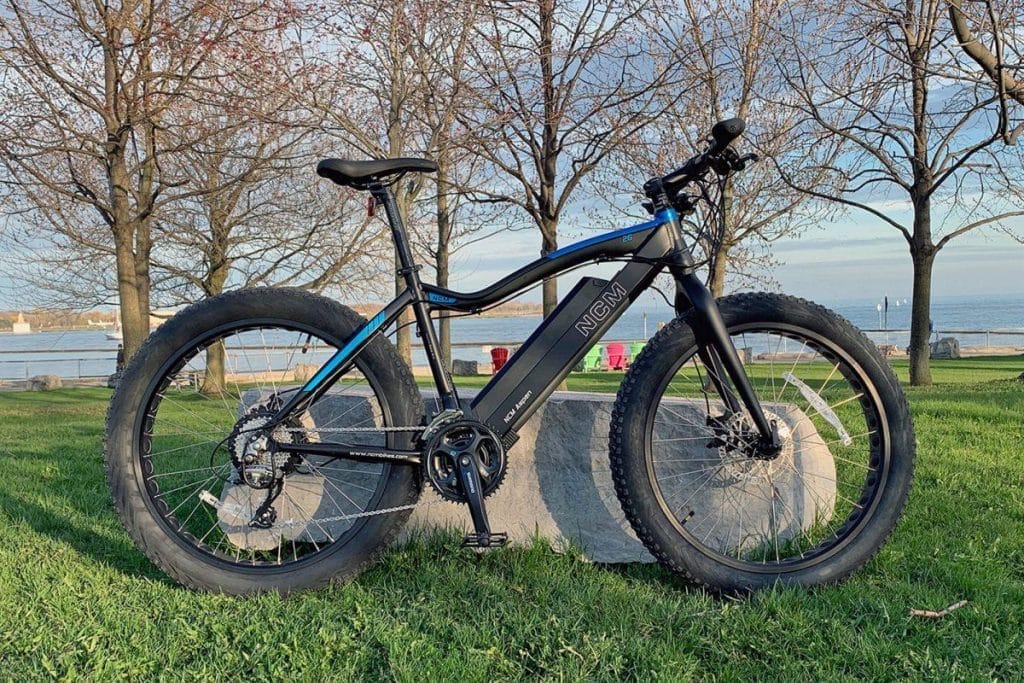

The NCM Aspen is a versatile fat-tire e-bike designed for rugged terrain, capable of navigating snow, sand, grass, and other off-road surfaces with ease. Its massive 26×4-inch tires provide stability and grip, making it a favorite for adventure enthusiasts. Although equipped with a rigid fork instead of suspension, the NCM Aspen compensates with low tire pressure, which provides a degree of cushioning and enhanced control, especially on uneven paths.

Built for durability, the frame incorporates a semi-integrated battery and an external controller that improves efficiency and heat management. This design choice helps maintain affordable replacement costs for the battery while keeping it safely protected. Featuring a triple chainring with eight rear speeds, the bike’s drivetrain setup offers a wide range of gearing options, allowing for both easy pedaling on flat terrain and powered assistance when climbing.

With a 500W motor providing up to 80Nm of torque, the NCM Aspen can handle challenging trails and inclines without breaking a sweat. The motor is paired with a 48V, 13Ah battery, delivering a solid range of 25-40 miles per charge, depending on riding conditions. Notably, the bike includes a throttle, which can be particularly useful when starting on inclines or in rougher terrains. A handy feature is that the throttle remains operational even in zero assist mode, offering a seamless and flexible riding experience.

The NCM Aspen’s LCD display offers a wealth of information, from speed to battery life, and it even includes a USB port for charging devices. Riders can easily toggle between six levels of pedal assistance and enjoy features such as walk mode, which helps maneuver the bike when walking it over challenging surfaces.

For control and safety, the Aspen is outfitted with mechanical disc brakes that feature a motor inhibitor on the left brake lever. The brakes are responsive and suited for off-road riding. However, hydraulic disc brakes would be a potential upgrade for riders seeking enhanced stopping power. The frame, while light at 59.3 pounds, lacks features like a bottle cage or kickstand mounts, although it includes provisions for fenders. Riders can add comfort by opting for a suspension seat post, an accessory commonly requested by Aspen buyers.

Priced at $2,199, the NCM Aspen is positioned as a value-packed fat-tire e-bike that balances performance and affordability. Its solid construction, coupled with an efficient drivetrain and well-thought-out design, makes it an attractive option for those who enjoy off-road adventures without breaking the bank. With its user-friendly features and proven hardware, the Aspen is a fantastic choice for both recreational riders and urban adventurers.

NCM Aspen E-Bike Information:

  1. Range: 25-40 miles per charge
  2. Top Speed: 20 mph
  3. Motor Size: 500W, 80Nm torque
  4. Battery Size: 48V, 13Ah
  5. Frame Type: Aluminum alloy, fat bike-specific
  6. Warranty: 1 year limited warranty
  7. Safety Certified: Yes
  8. Digital Display: Das-Kit L7 LCD display with USB port

Full Specifications:

  • Miles Per Charge: 25-40 miles
  • Max Speed: 20 mph
  • Max Rider Weight: 275 lbs
  • Waterproof Rating: IPX5
  • Motor Size: 500W, 80Nm torque
  • Battery Size: 48V, 13Ah (625Wh)
  • Tire Size: 26 x 4 inches
  • Product Weight: 59.3 lbs
  • Dimensions: Length: 78 inches, Width: 24 inches, Height: 46 inches
  • Warranty Length: 1 year limited warranty
  • Frame Material: Aluminum alloy
  • Color(s): Black, White
  • Inner Tubes: CST 26 x 4 fat tires
  • Brakes: Mechanical disc brakes, 180mm front, 160mm rear
  • Charge Time: 6-8 hours
  • Suspension: None (rigid fork)
  • Display: Das-Kit L7 LCD with USB port
  • Headlight: Integrated LED
  • Charger: Standard 48V, 2A
