Magnum Payload e-Bike Overview

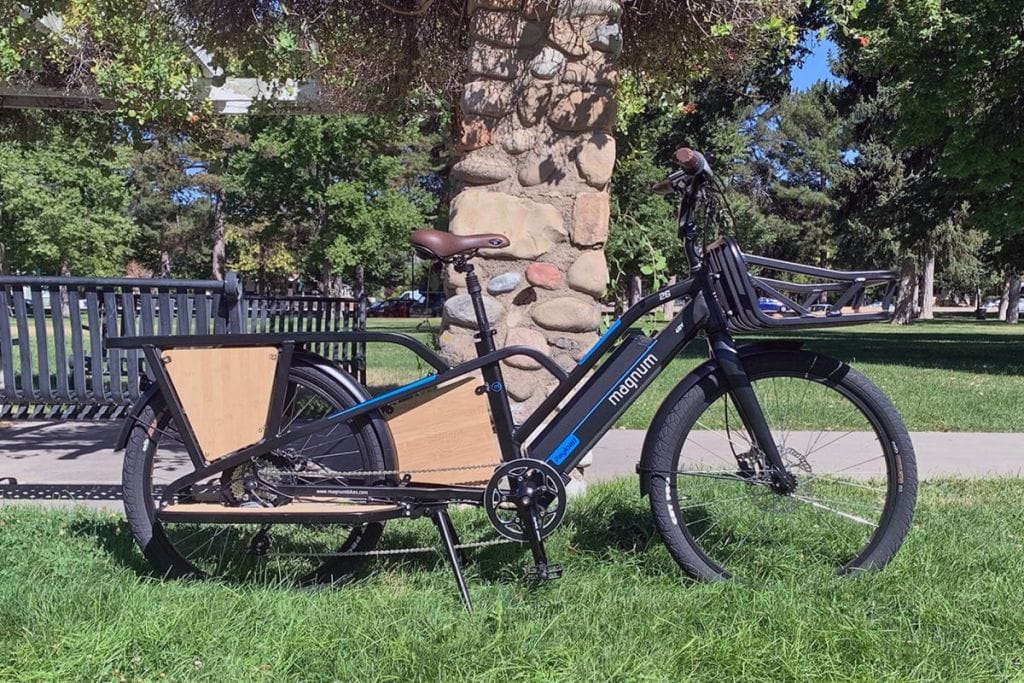

Magnum Payload, a robust cargo e-bike that’s making waves for its versatility and thoughtful design. Today, we’re cruising through Liberty Park in Salt Lake City, taking this beauty for a spin. So, let’s buckle up and get ready to explore what makes the Magnum Payload a standout choice for those looking to carry more than just themselves on two wheels!

First off, the Magnum Payload is a speed paddock cargo bike priced at a reasonable $2,699. This bike is built for heavy-duty tasks, complete with a head tube mounted basket and a large, sturdy bamboo deck. Perfect for groceries, beverages, or whatever else you need to haul, this bike doesn’t mess around when it comes to capacity. Although there’s no official maximum weight rating for the basket, it feels solid enough to support around 55 pounds, the standard for most aftermarket racks.

One of the standout features of the Magnum Payload is its longtail design. This means it’s a bit longer than your average bike, offering more space on the rear rack for things like child seats or additional cargo. While the final build will have some tweaks—like a slotted bamboo deck for lighter weight and easier bungee cord attachment—the pre-production model already impresses with its practicality.

The Payload is powered by a das kit motor, which pairs beautifully with the das kit display and a nifty trigger throttle. This motor will be solid black in the final version, but for now, it’s sporting some silver markings. Despite its hefty 80-pound weight, the bike is surprisingly well-balanced, thanks to its low-centered battery placement and a reinforced frame that’s both durable and easy to handle.

For stopping power, the Magnum Payload is equipped with hydraulic disc brakes, a crucial upgrade for heavier e-bikes. These brakes offer reliable stopping power, complemented by 180mm rotors that ensure you can handle both the bike and your cargo safely. The bike’s tires, sized at 26×2.4 inches, provide a stable and comfortable ride, with the added benefit of thicker spokes for durability.

The Magnum Payload also boasts a variety of comfort features, including a suspension seat post and ergonomic grips. The seat post offers about 40mm of travel and adjustable preload, making it suitable for riders of different weights. While the front fork is rigid aluminum alloy, the combination of the suspension seat post and adjustable tire pressure (35-65 psi) ensures a smooth ride.

Aesthetically, the bike is sleek and stylish, with a black finish and reflective sidewall stripes for added visibility. While it doesn’t come with built-in lights—a minor downside—it does have a sturdy kickstand and wide pedals with fixed pins for stability. The overall design is practical, focusing on functionality and user comfort.

One of the bike’s unique aspects is its modularity. The running boards are removable, and there’s a quick disconnect for the rear motor, making maintenance easier. The front basket is mounted to the frame rather than the handlebars, ensuring that it remains stable and doesn’t sway with your steering.

The Magnum Payload’s power system is also worth noting. It features a powerful motor controller and a battery that can be upgraded from the standard 48V 13Ah to a 48V 19Ah for those needing extra range. The battery is conveniently removable, making it easy to charge separately and store safely to prolong its lifespan.

In summary, the Magnum Payload is a well-thought-out cargo e-bike that combines power, practicality, and style. It’s perfect for those who need a reliable bike for transporting goods or even passengers, offering a blend of comfort and durability that’s hard to beat.

Information of Magnum Payload e-Bike

  1. Range: Varies based on usage and battery option.
  2. Top Speed: 25 miles per hour with pedal assist.
  3. Motor Size: 750W nominal, 1000W peak.
  4. Battery Size: 48V 13Ah standard, 48V 19Ah optional.
  5. Frame: Longtail cargo bike frame with reinforced tubing.
  6. Warranty: 1-year comprehensive warranty.
  7. Safety Certified: Yes, features hydraulic disc brakes and motor inhibitors.
  8. Digital Display: Yes, das kit display.

Full Specifications

  • Miles Per Charge: Depends on battery option and usage.
  • Max Speed: 25 mph (pedal assist).
  • Max Rider Weight: 300 pounds.
  • Waterproof Rating: Not specified.
  • Motor Size: 750W nominal, 1000W peak.
  • Battery Size: 48V 13Ah standard, 48V 19Ah optional.
  • Tire Size: 26×2.4 inches.
  • Product Weight: Approximately 80 pounds.
  • Dimensions: Longtail cargo design.
  • Warranty Length: 1 year.
  • Frame Material: Aluminum alloy.
  • Color(s): Black.
  • Inner Tubes: Standard 26-inch.
  • Brakes: Hydraulic disc brakes with 180mm rotors.
  • Charge Time: Approximately 6.5 hours for 13Ah battery.
  • Suspension: Suspension seat post, 40mm travel.
  • Display: Das kit display with various metrics.
  • Headlight: Not included.
  • Charger: Standard 2A charger with USB port.
